How to create VM with VMware ESXi and seperate IP for them??
New on LowEndTalk? Please Register and read our Community Rules.

How to create VM with VMware ESXi and seperate IP for them??

Please help me, i'm new !

Comments

  • KuJoeKuJoe Member, Provider
    edited July 2015

    Create a VM and in the OS set an IP that is different from the other VMs and hosts. Done.

    I hope that is what you're asking. If not, please provide a more detailed question so we can understand better.

    Thanked by 1vaotam
    -Joe @ SecureDragon - LEB's Powered by Wyvern in FL, CO, CA, IL, NJ, GA, OR, TX, and AZ
    Need backup space? Check out BackupDragon
  • mikhomikho Member, Provider

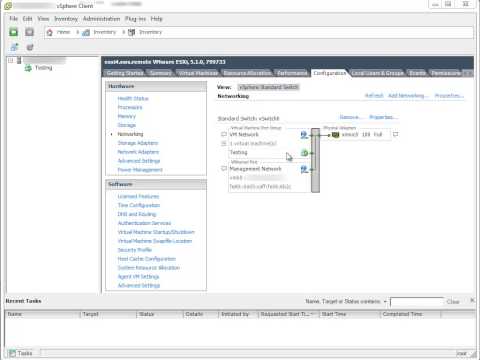

    Google result. Watch and let us know if it worked

    Thanked by 1vaotam
    I can now be found at https://talk.lowendspirit.com
    or on twitter
    Come say HI! :)
  • question 1. Is this on a local network or you bought a dedicated server?
    2. does your dedicated server come with multiple IP's or are you trying to get a NAT configured

    Thanked by 1vaotam

    Need website monitoring? Give UptimeToolbox a shot.

  • BharatBBharatB Member, Provider
    edited July 2015

    1) Please google the question you've asked.

    2) Please read what you've googled.

    Readydedis, LLC - Managed Dedicated Servers

  • vaotamvaotam Member
    edited July 2015

    @ronaldgrn said:
    question 1. Is this on a local network or you bought a dedicated server?
    2. does your dedicated server come with multiple IP's or are you trying to get a NAT configured

    answer 1: dedicated server
    answer 2: i bought from dacentec come with 1IP, can you guide me use NAT configured ?

  • while you can NAT with 1ip... I really recommend you get at least 2 IPS... one for the ESXi install and the other for your firewall (pfsense/sophos/zentyal/clearos etc)

    Thanked by 1vaotam

    Need website monitoring? Give UptimeToolbox a shot.

  • KuJoeKuJoe Member, Provider
    edited July 2015

    You have 2 options if you only have a single IP available:

    1) Buy a 2nd IP, install a software router (I use ClearOS for my ESXi installs but Vyatta or any other should be fine), add the 2nd IP to the software router and point all of your VMs to the software router for NAT.

    2) Install a software router (like mentioned above), add your single IP to the software router, change your IP on your ESXi host to a NAT'ed IP (or use DHCP) and point it to your software router to manage internally and point all of your VMs to the software router for NAT. (You'll want to request KVM over IP access to your server from Dacentec since you'll lose connection to your ESXi host when you assign the IP to your software router.)

    Thanked by 1vaotam
    -Joe @ SecureDragon - LEB's Powered by Wyvern in FL, CO, CA, IL, NJ, GA, OR, TX, and AZ
    Need backup space? Check out BackupDragon
  • WilliamWilliam Member, Provider
    edited July 2015

    You can't run NAT on ESXi with only one IP - You need another IP for a VM that does the NAT.

    ronaldgrn said: while you can NAT with 1ip...

    No you can't unless you don't want access to the host anymore or play around with ugly hacks (multiple bridges and NAT IP on the host, very bad if the VM does not autostart at one point).

    Thanked by 1vaotam
  • KuJoeKuJoe Member, Provider

    William said: You can't run NAT on ESXi with only one IP - You need another IP for a VM that does the NAT.

    You can, you just need to run a software router and you'll need to NAT your ESXi host. I've done this in the past with a Delimiter server that only had one IP.

    Thanked by 3ronaldgrn mikho vaotam
    -Joe @ SecureDragon - LEB's Powered by Wyvern in FL, CO, CA, IL, NJ, GA, OR, TX, and AZ
    Need backup space? Check out BackupDragon
  • @William said:
    You can't run NAT on ESXi with only one IP - You need another IP for a VM that does the NAT.

    Its less a hack and more of some careful planning to get it working.. of course I really don't recommend it but on cases where you have ilo or DRAC you don't necessarily need to keep the server on its own ip.. in fact its probably safer if its not.

    Thanked by 1vaotam

    Need website monitoring? Give UptimeToolbox a shot.

  • @BharatB said:
    1) Please google the question you've asked.

    2) Please read what you've googled.

    Like you were never a beginner...

    Thanked by 1vaotam

    Need website monitoring? Give UptimeToolbox a shot.

  • BharatBBharatB Member, Provider

    @ronaldgrn said:
    Like you were never a beginner...

    I did what I advised when I was a beginner.

    Thanked by 1BeardyUnixGuy

    Readydedis, LLC - Managed Dedicated Servers

  • vaotamvaotam Member
    edited July 2015

    @ronaldgrn said:
    while you can NAT with 1ip... I really recommend you get at least 2 IPS... one for the ESXi install and the other for your firewall (pfsense/sophos/zentyal/clearos etc)

    I think this is good choice, so summary, now i have 1 IP, and i will install pfsense and next step, how i can seperate more IP by pfsense. Thank you !

  • I got esxi to work with 1 ip nat using an online.net server.

    http://www.lowendtalk.com/discussion/comment/993621/#Comment_993621

    Let me know if it works for dacentec.
